Downloadable Files
Description
xChoose the sweep angle you need, and the wheel box size.
Auto park (left or right). 2 Speed.
Supplied with 2 wiper arm gearboxes, motor mounting bracket and 1050mm, copper-coated steel tube with a brass nut for you to cut and make up your own custom assembly.
Wiper arm spindle diameter 13.5mm.
Instructions included.

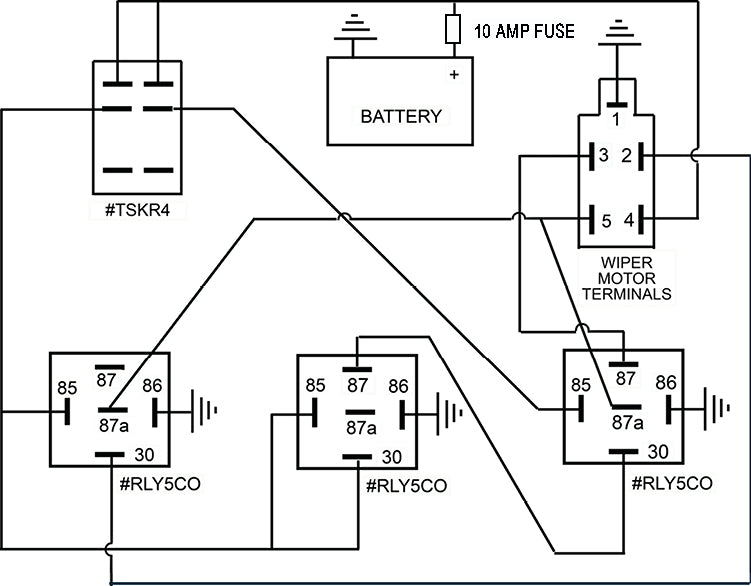

Requires correct switch and a changeover relay for 2 speed operation and park (#WIPSW2 & #RLY5CO) and 5 pin plug for park switch (#WIPPLG2).
Long Wheel Box: Height from base to top of spindle 64mm.
Standard Wheel Box: Height from base to top of spindle 50mm.
WIPER MOTOR SPEEDS The nominal sweeps per minute of this motor, with 12 volts supply and cable fitted but no tubes or wheel boxes is: SLOW - 38 spm and FAST 56 spm.
NOTE. TO PREVENT OVERHEAT AND DAMAGE TO THE MOTOR, THE +12 VOLT SUPPLY MUST INCLUDE A TEN AMP FUSE
This may increase slightly with the engine running and alternator charging at 14 volts but will decrease, depending on load factors such as: Bends in the bundy tubes, insufficient lubrication, sweep angle, length of wiper arms and blades, how wet the screen is.
See catalogue & YouTube video link for more information.
NOTE: IF YOU SELECT A ROYAL MAIL SHIPPING OPTION, THE BUNDY WILL BE SUPPLIED COILED UP AND WILL REQUIRE STRAIGHTENING. IF YOU PREFER TO HAVE IT SUPPLIED STRAIGHT, PLEASE SELECT COURIER DELIVERY.
WINDSCREEN WIPER KIT #WWK
