Description
xCOMPACT HEAT / AIR CONDITIONING KIT
Here’s a compact yet powerful under-dash package delivering both Heat and Air Conditioning to your cockpit.

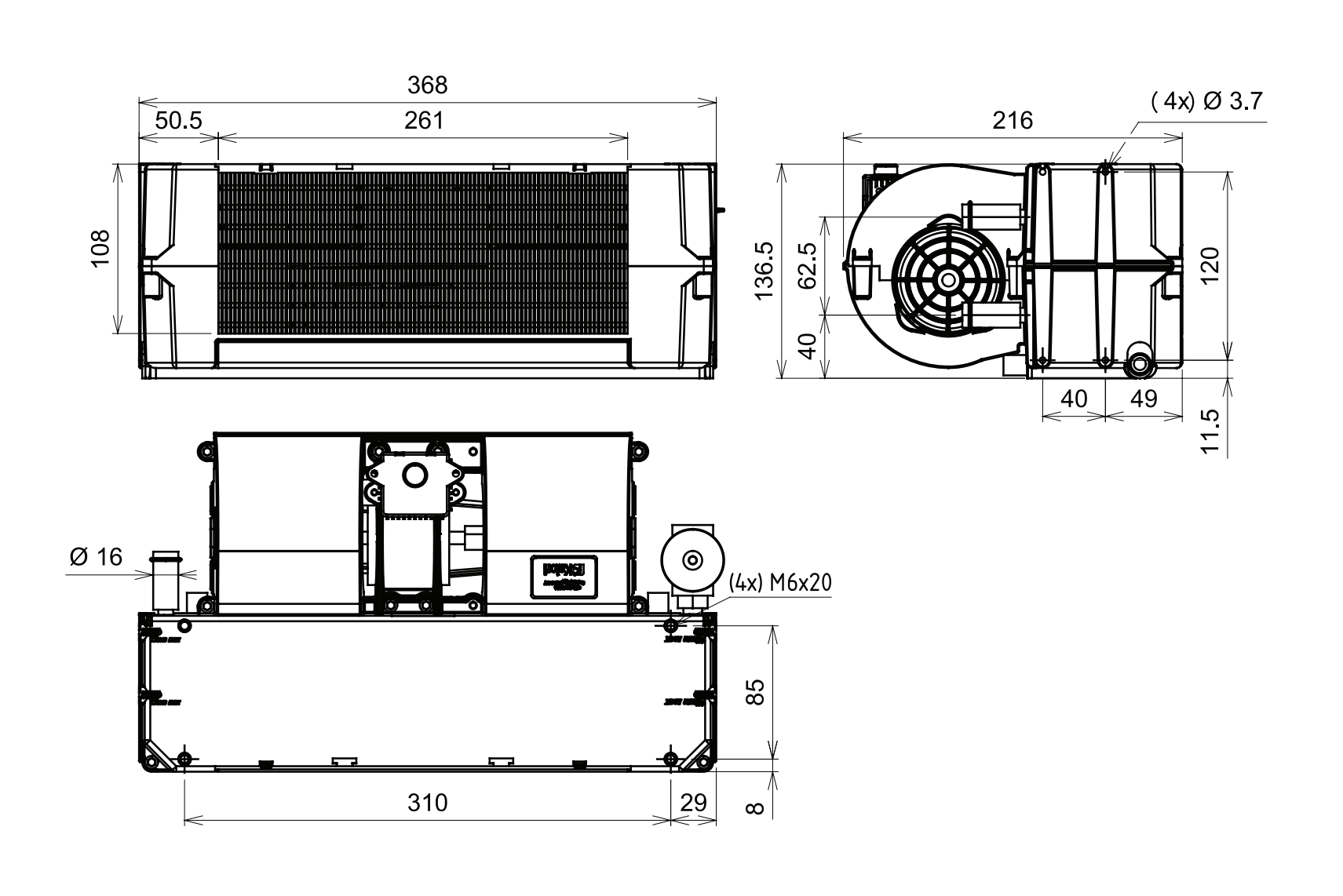

Size 368mm wide x 216mm front to back, 136mm high.
263mm front to back - including 4 outlet plenum.
Heating capacity 4.3Kw (14,680 BTU)
Cooling capacity 3.5 Kw. (12,000 BTU) - plenty for a four-seat saloon.
Maximum air movement 440 cubic metres/hour.

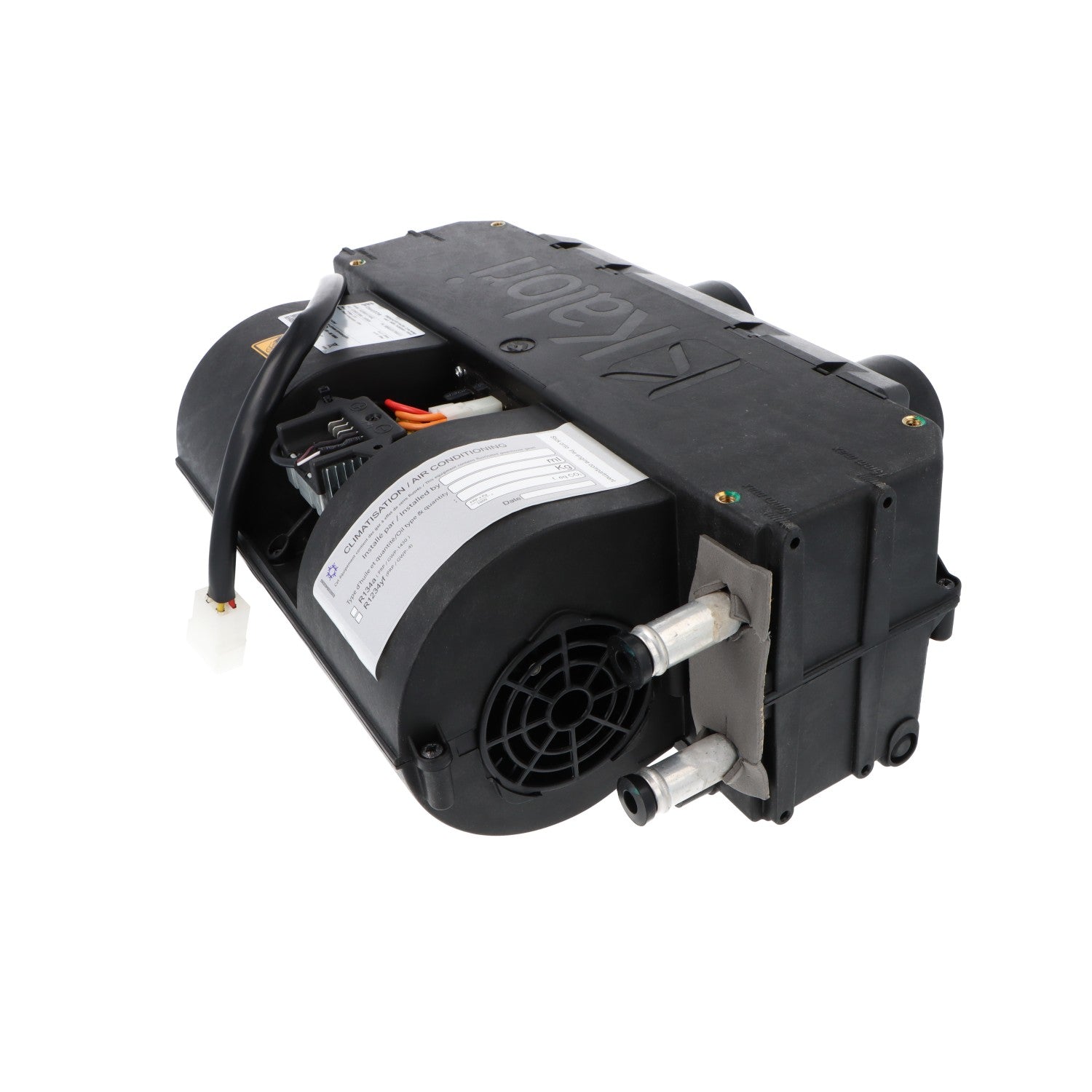

16mm Heater Inlet/Outlet.
Two 12mm condensate drain outlets on bottom. Unit must be mounted horizontally.
Multiple mounting options in the sides and top & bottom with simply-made brackets.
Universal kit includes:

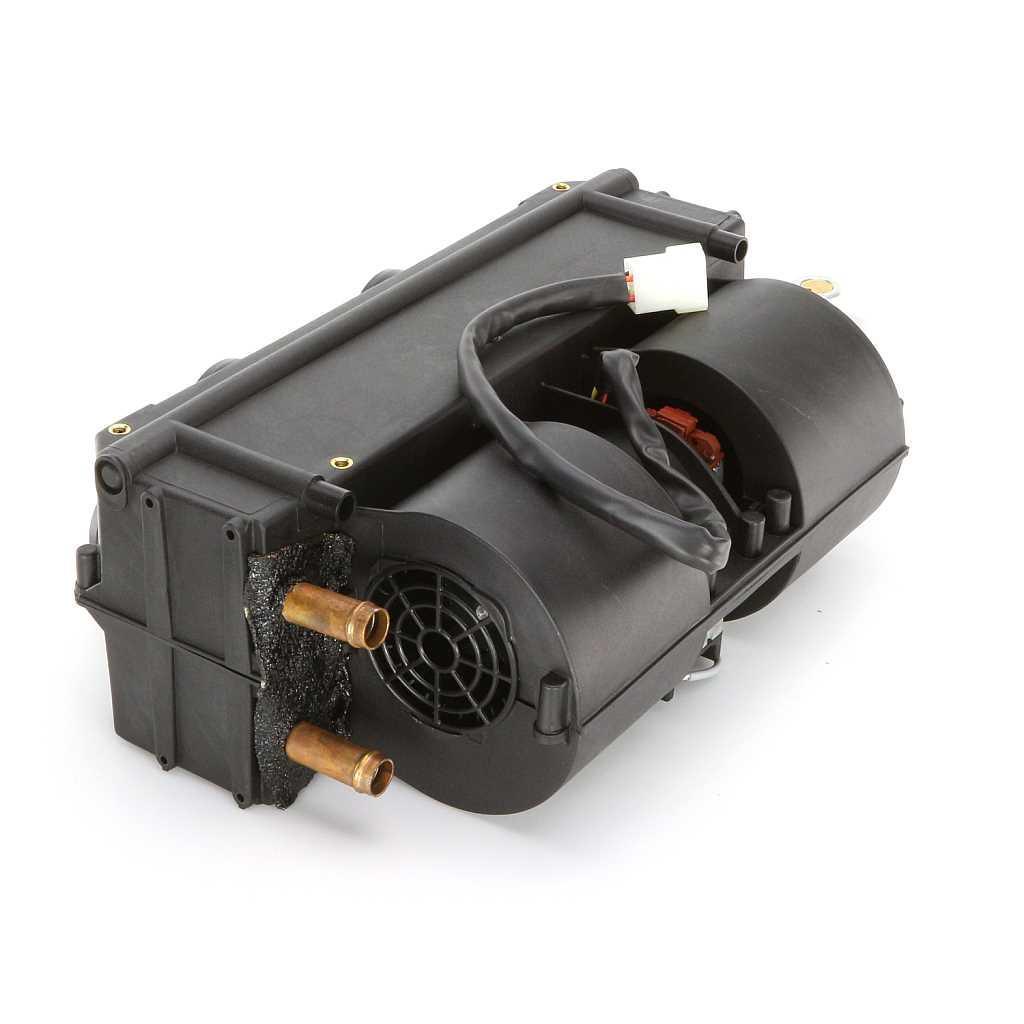

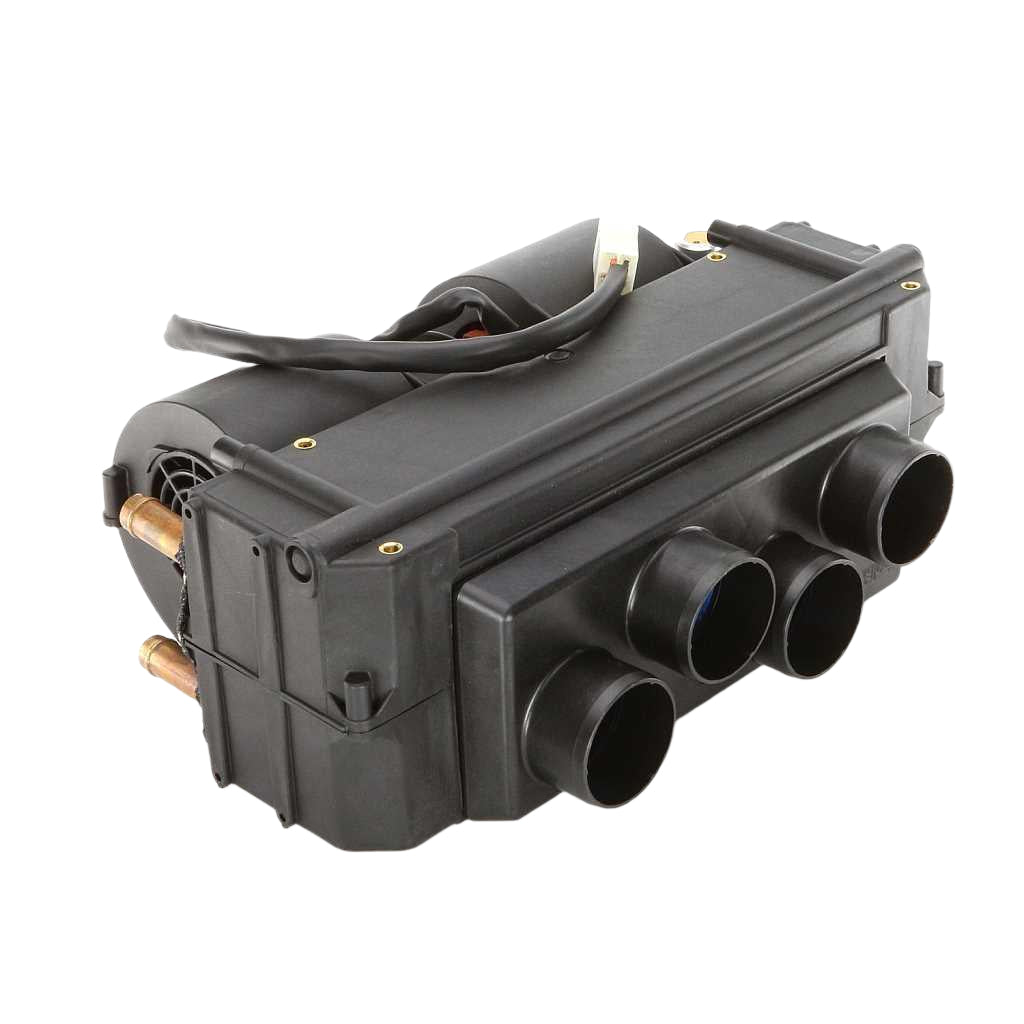

Under-dash unit with double squirrel cage, three-speed fan.

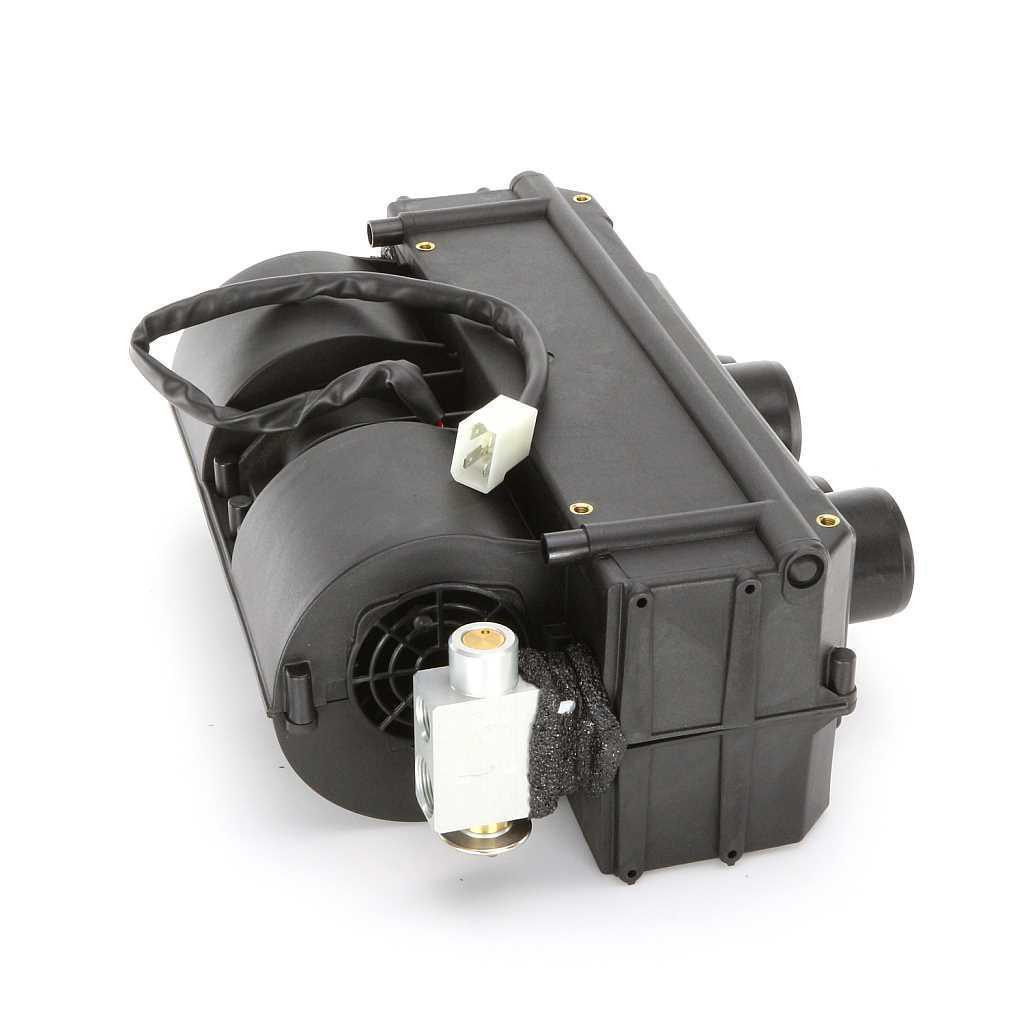

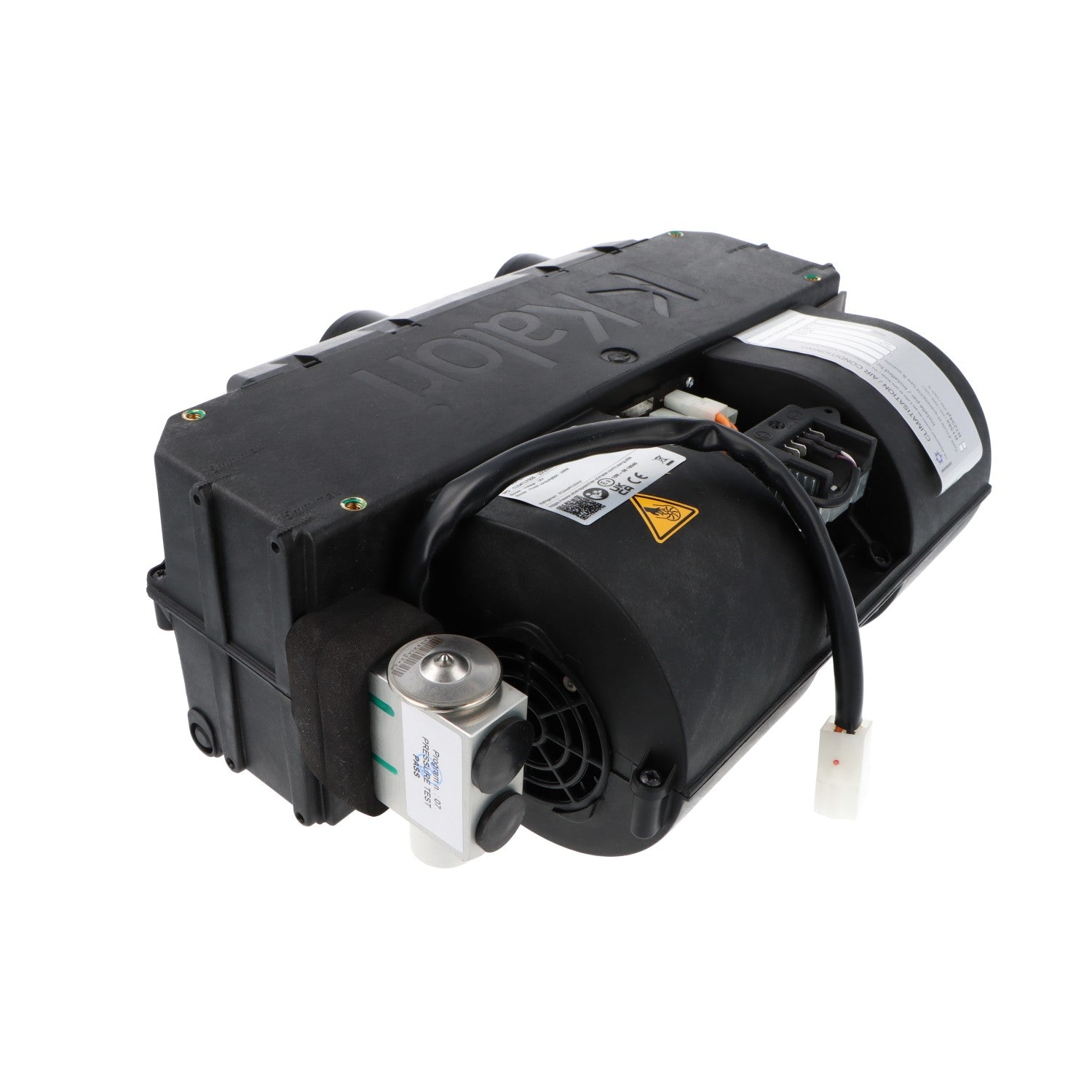

Pre-fitted expansion valve.
Removable plenum with four 55mm outlet vents and internal foam filter.

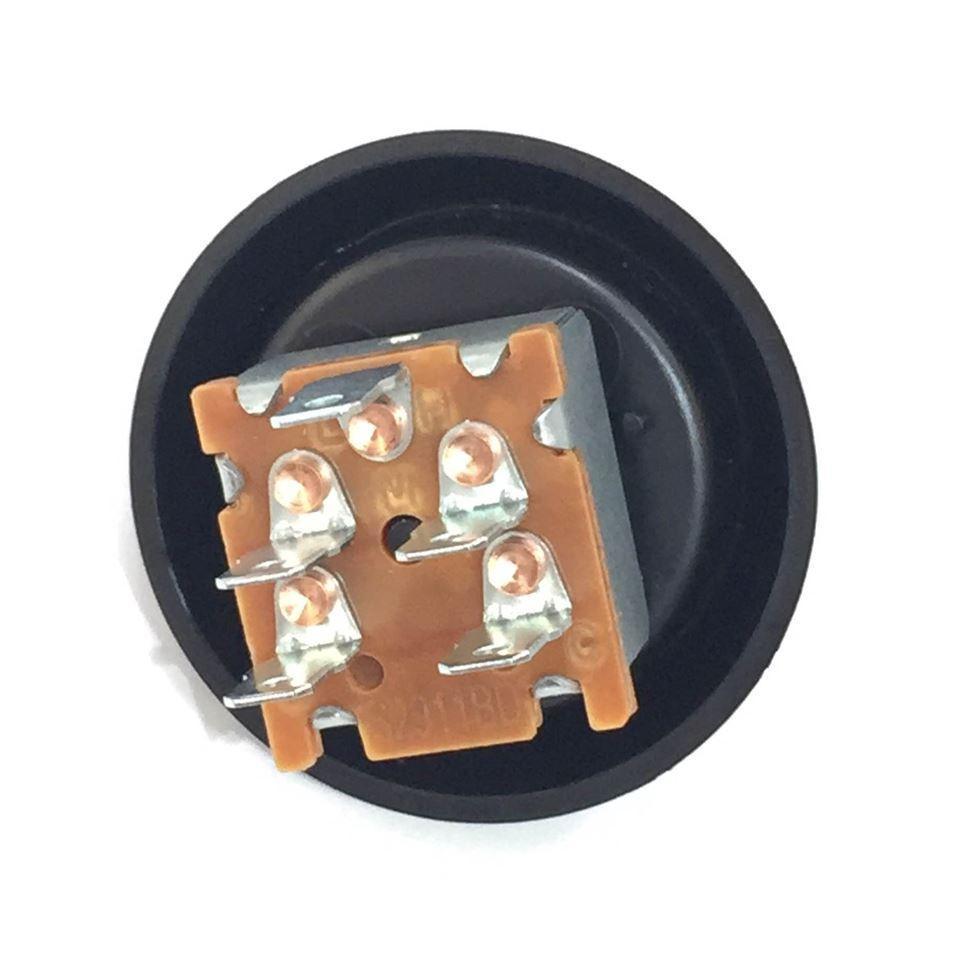

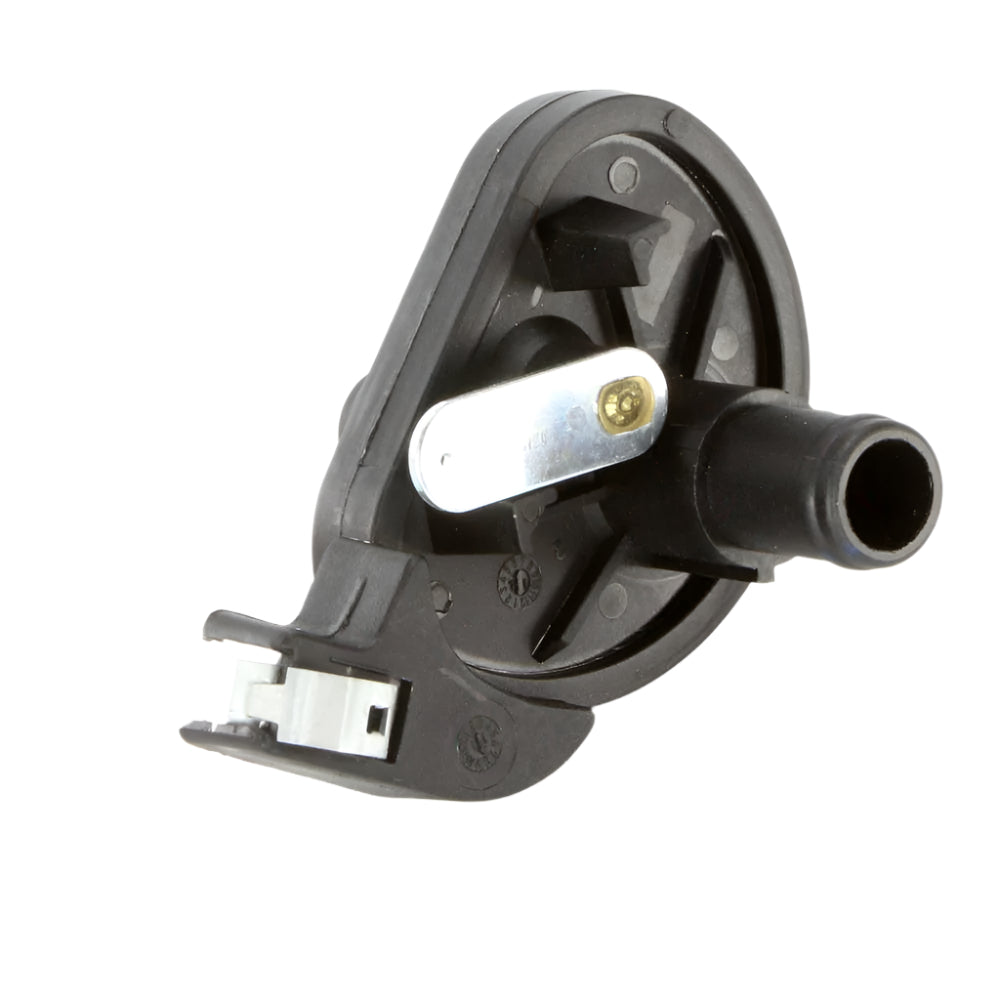

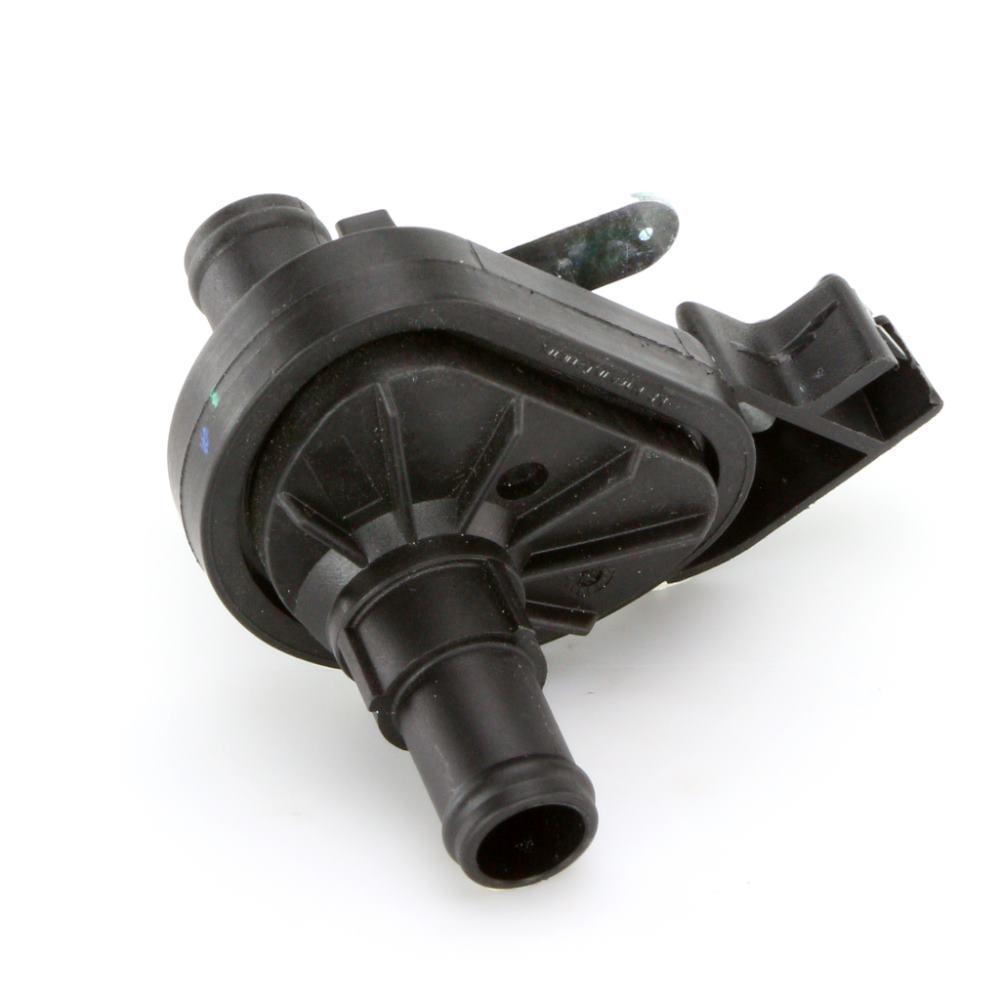

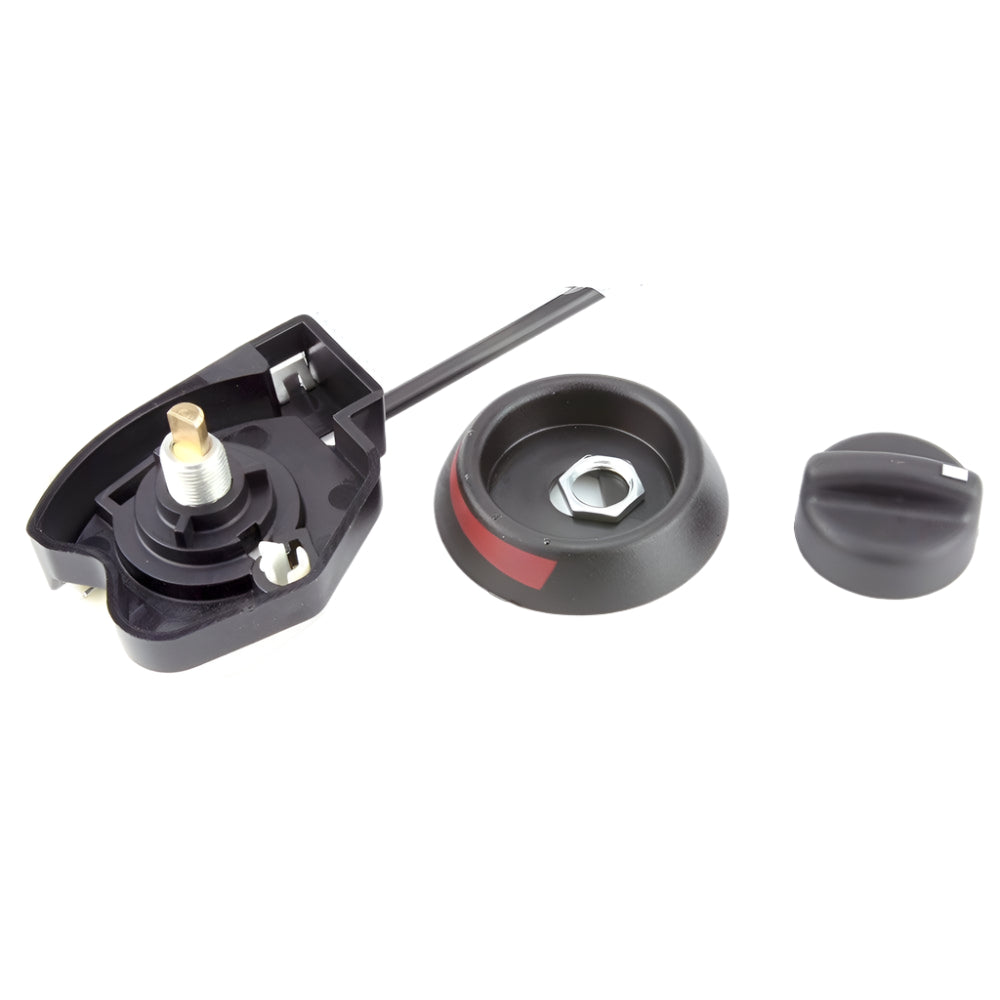

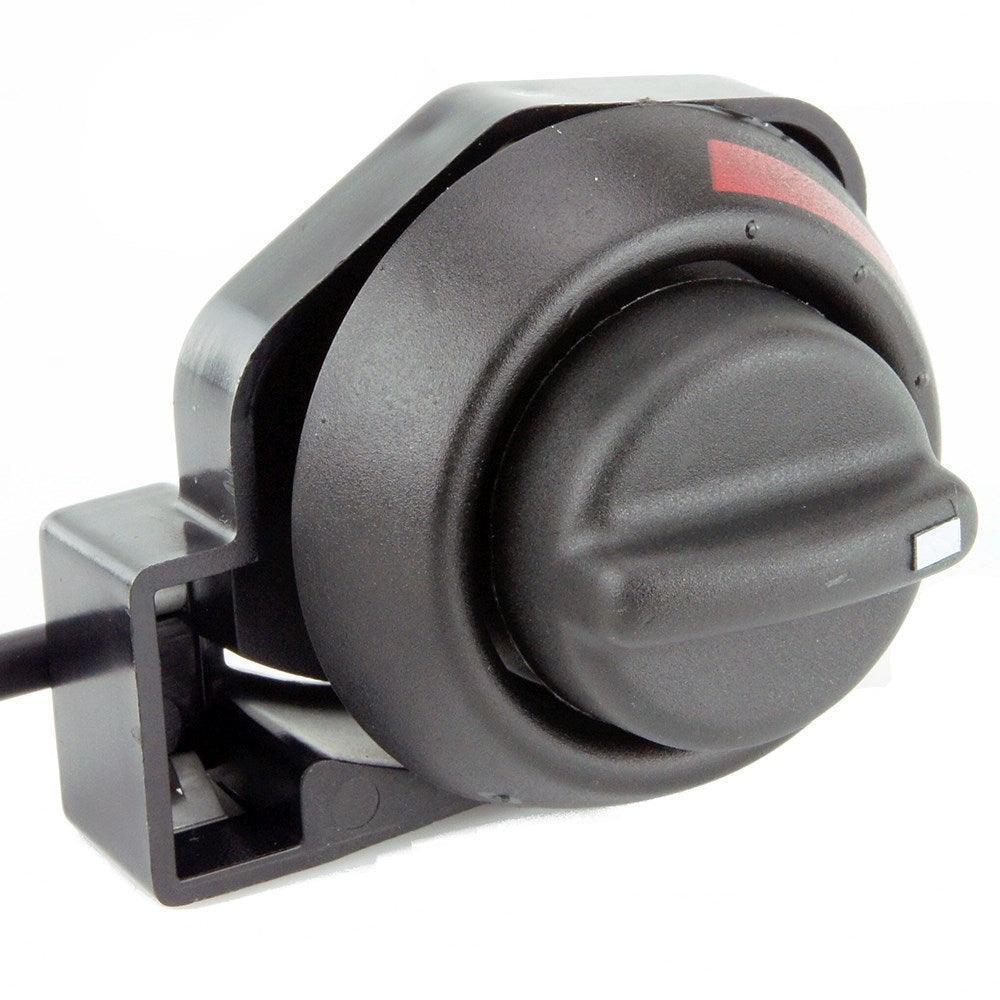

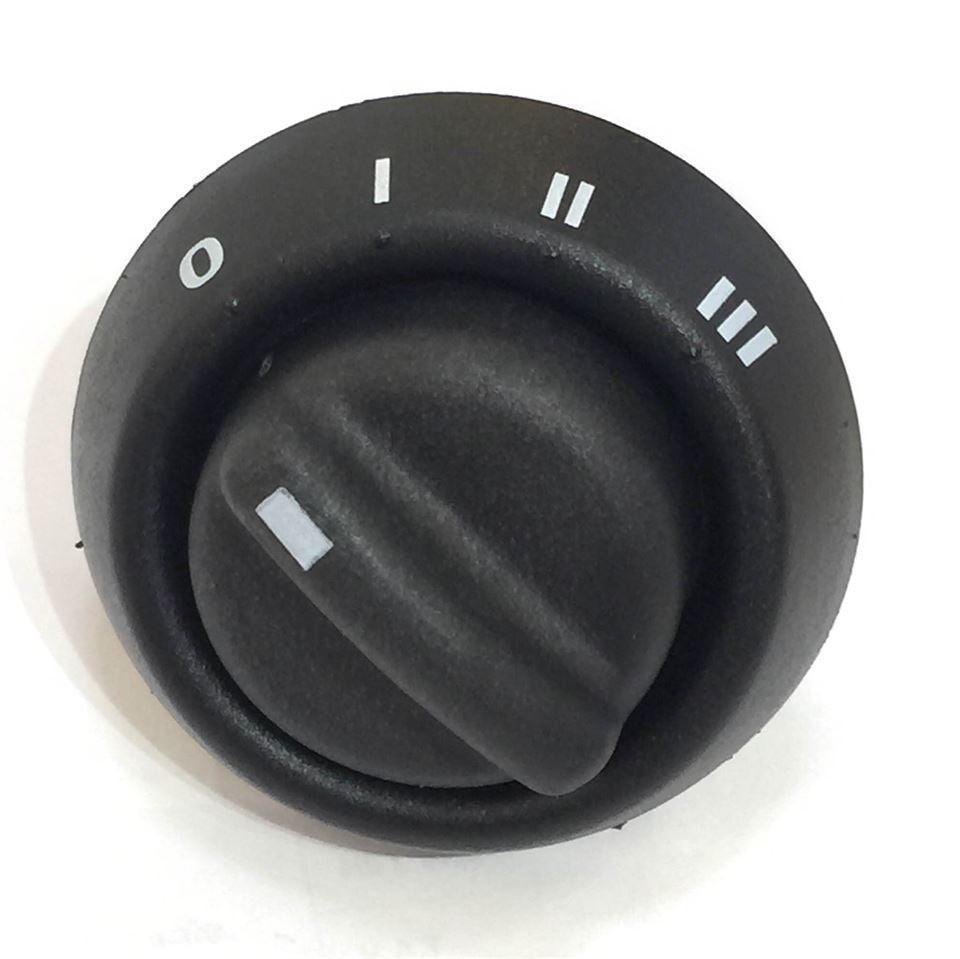

Three speed fan switch, rotary control cable and heater valve.

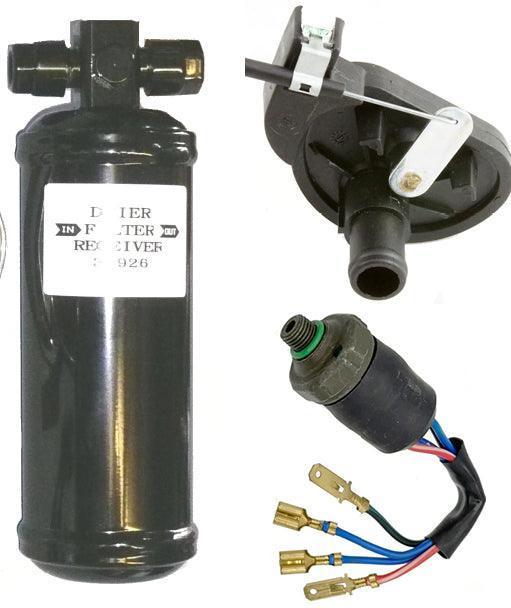

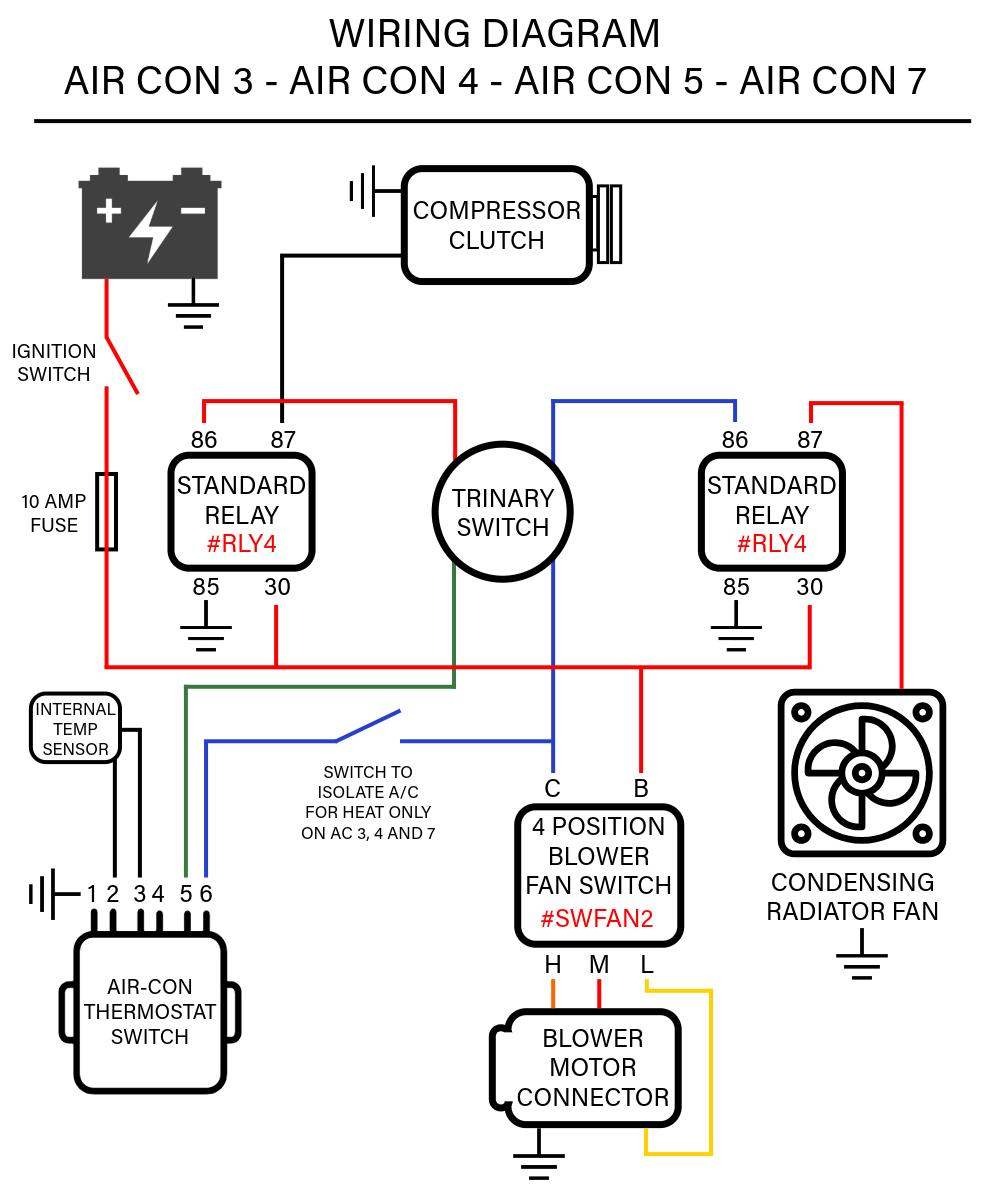

Desiccant drier with Trinary safety/radiator fan switch.

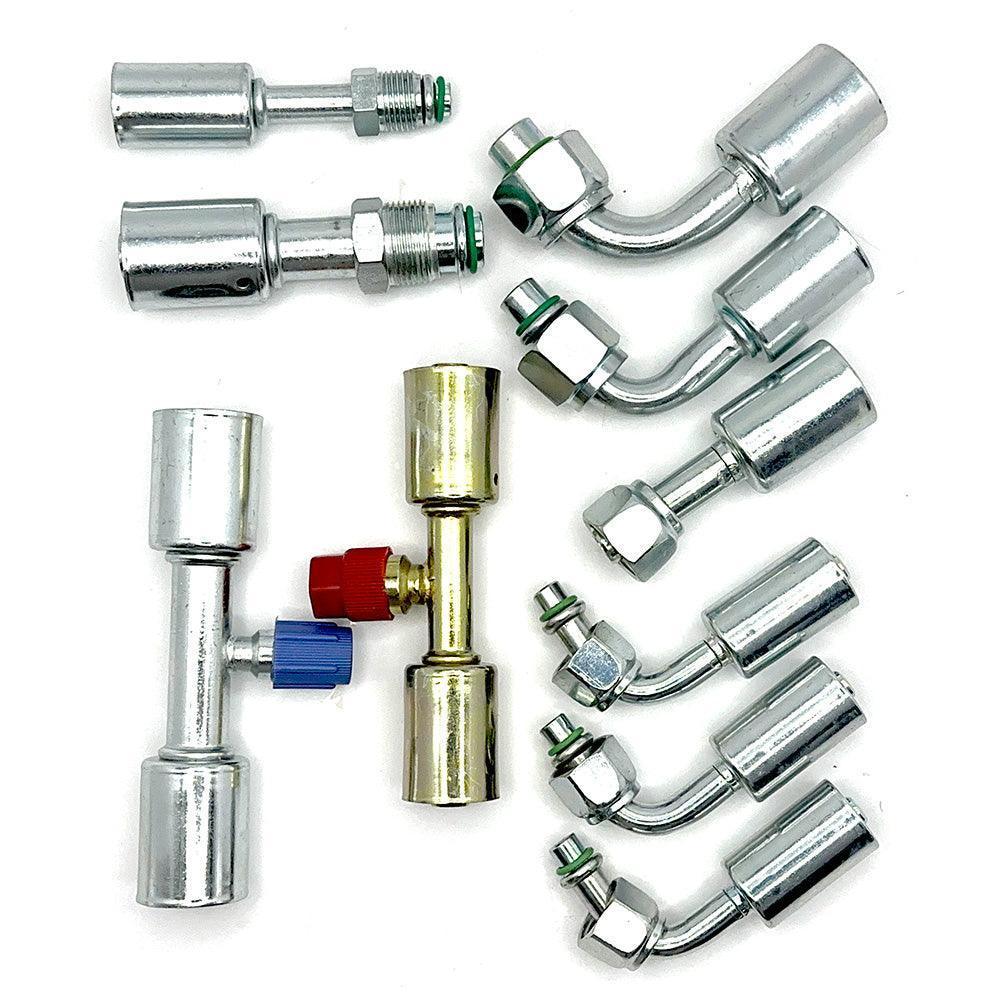

Complete set of hose unions, ‘O’ rings and charging/service ports. (Hoses not included but we can supply)
NOTES: Installation requires engine-driven AC compressor and condensing radiator (possibly with cooling fan).
Hose lengths can be determined and purchased after installation of components.
A Local Air Conditioning specialists will charge and test the system for you.
This unit offers MANUAL - NOT AUTOMATIC Climate Control.
It is important that you turn the heater off when turning the Air Conditioning on.
NOTE: For UK customers we can now offer a crimping service for your hoses. For just £60 we will collect your boxed-up hoses and unions, crimp them and send them back to you. Full instructions on how to prepare the hoses and unions will be sent with the kit.
NOTE: We now have a plenum that will fit this unit and allow vertical mounting. See #AC3VP

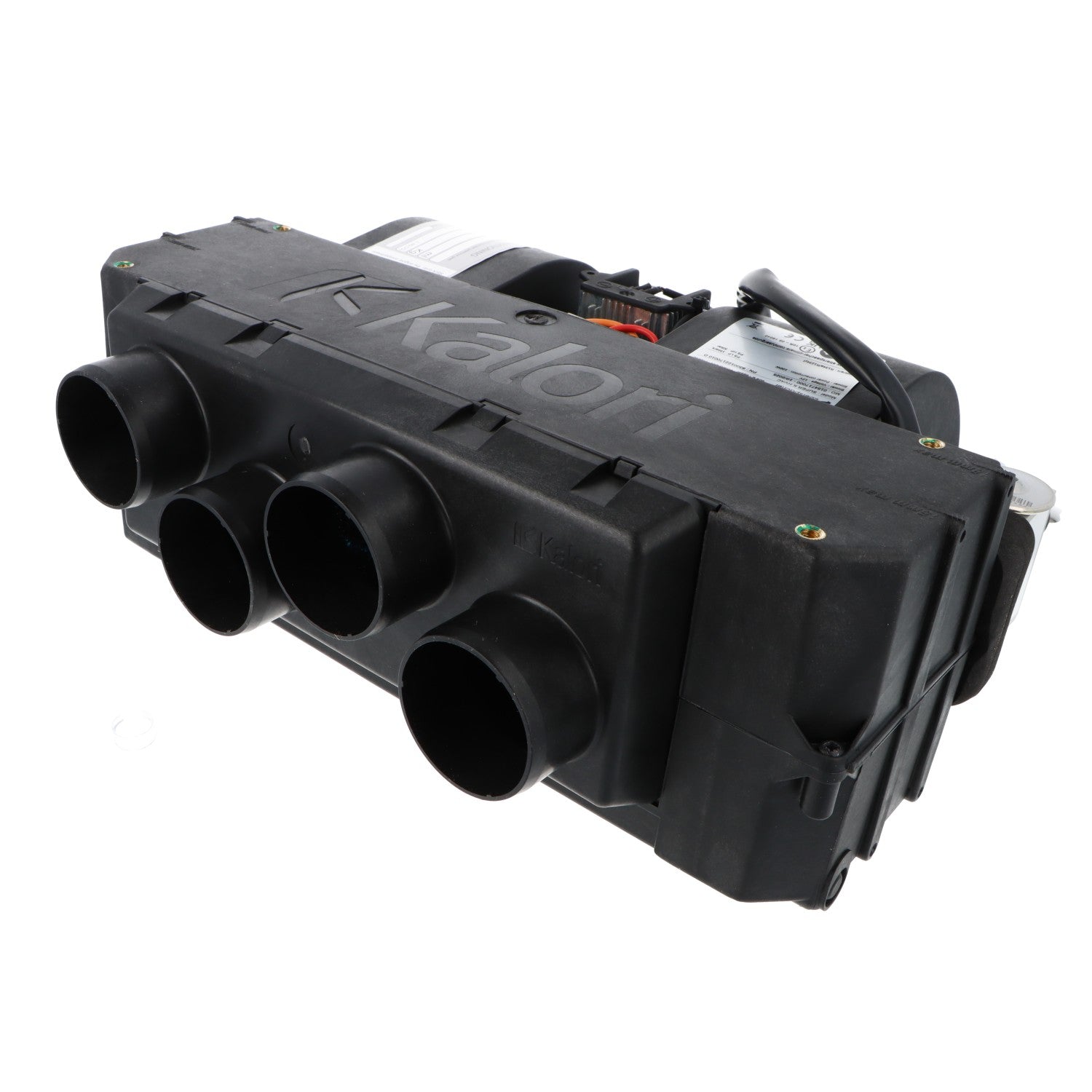

UNIVERSAL COMPACT AIR CONDITIONING & HEATER KIT #AIRCON3
