Description

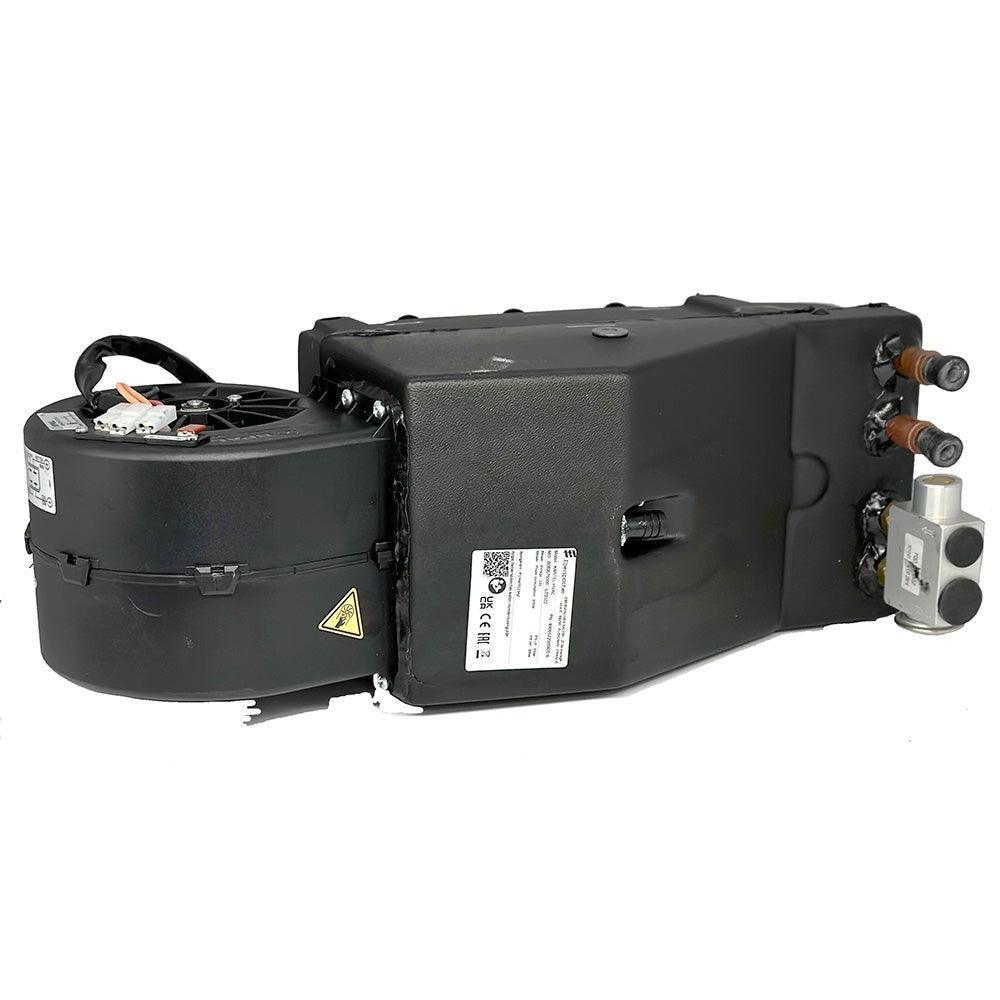

xHigh power, 12 Volt, combined Heating and Cooling in a compact yet powerful underdash package.

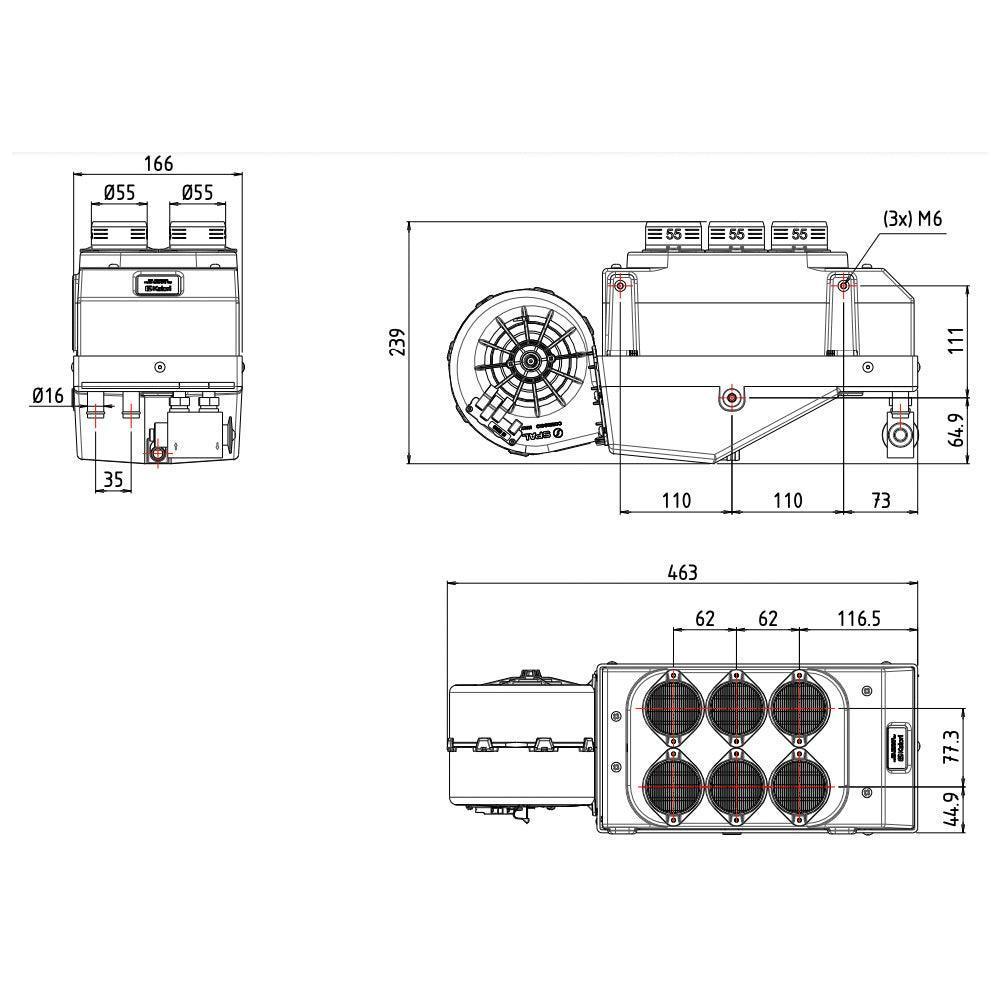

Size 463mm wide x 168mm front to back x 239 mm high.
Heating output 6.1 kw.
Cooling capacity 4.5 Kw.
Maximum air movement 530 m³/hour.
Electrical consumption 230 Watts.
Noise level 65db. Weight 4.64 Kg.
Three M6 female inserts for mounting on a vertical surface.
A/C, #8 female and #6 female outlets, 16mm Heater outlets and condensate drain connections are on the underside.
Universal kit includes:

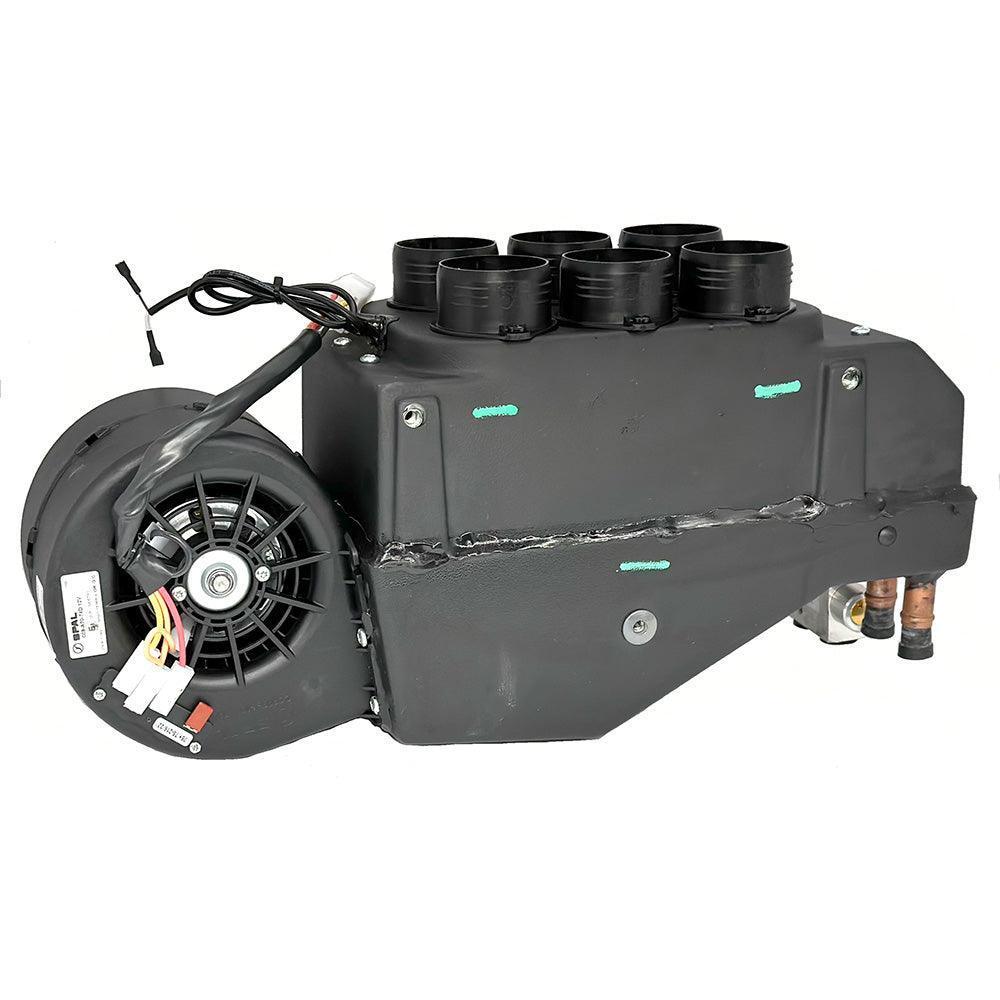

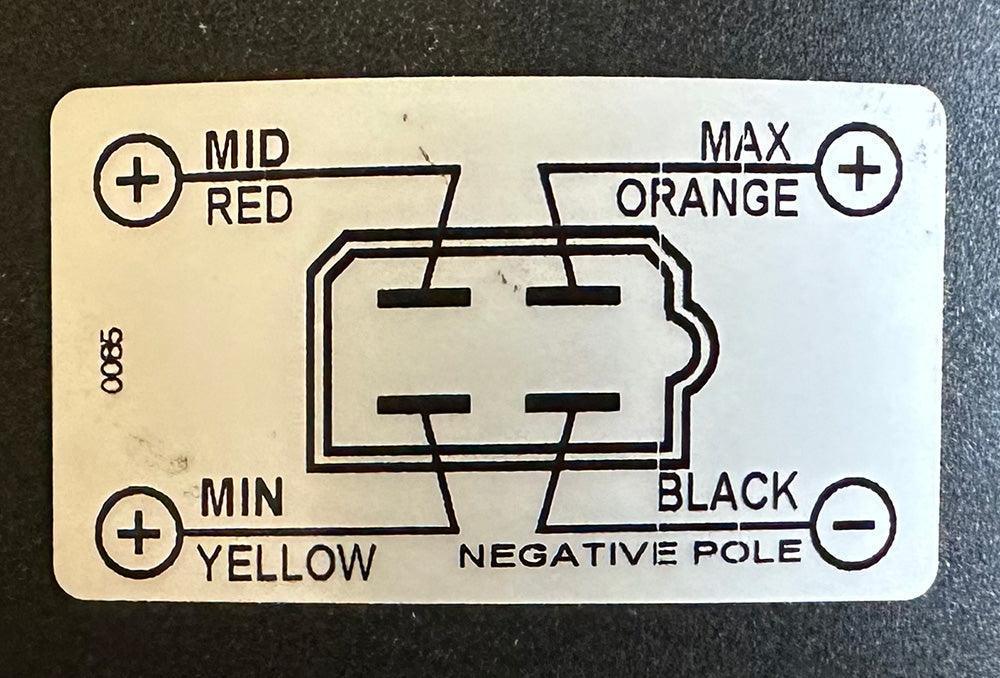

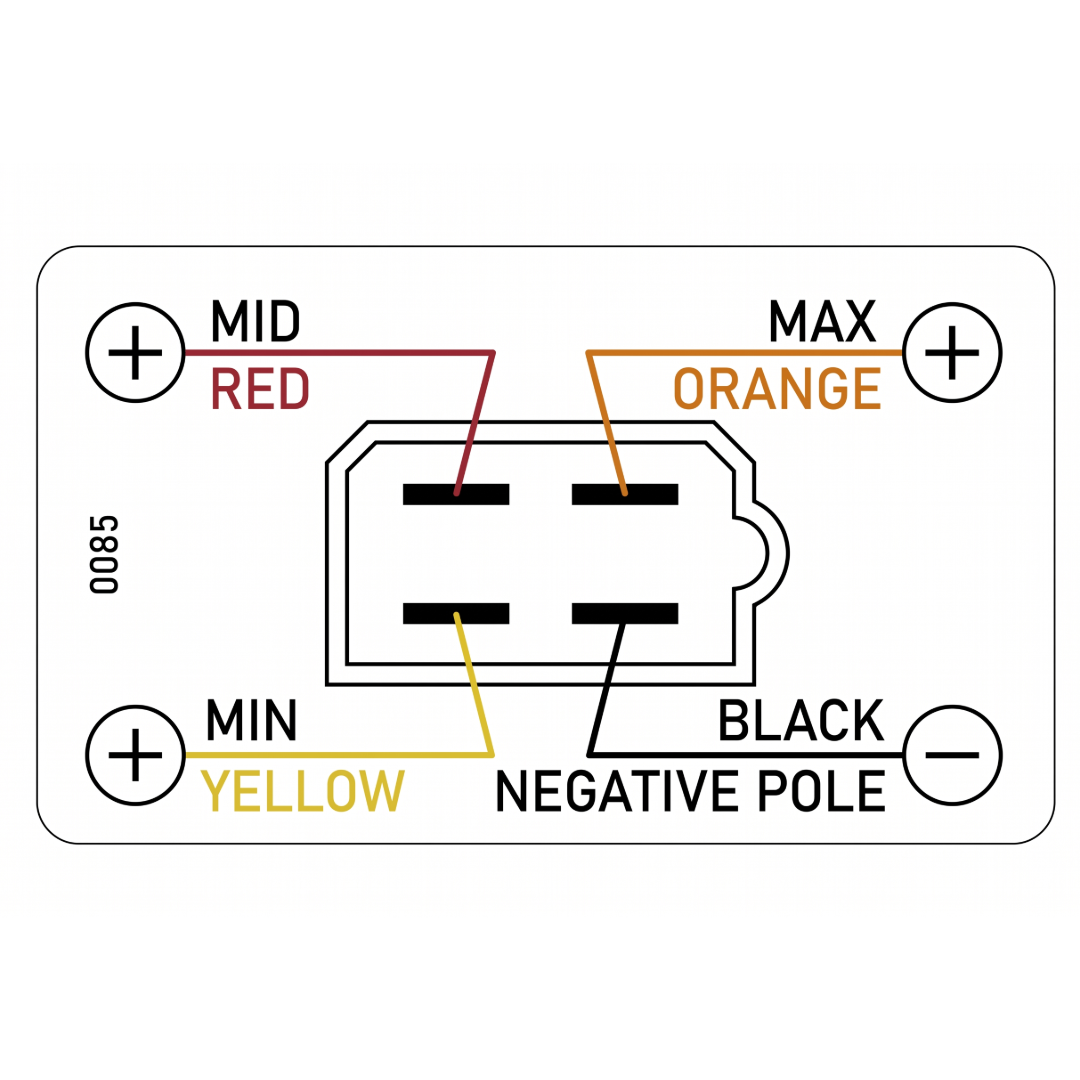

Under-dash unit with single squirrel cage, three - speed fan with thermal cut-out.

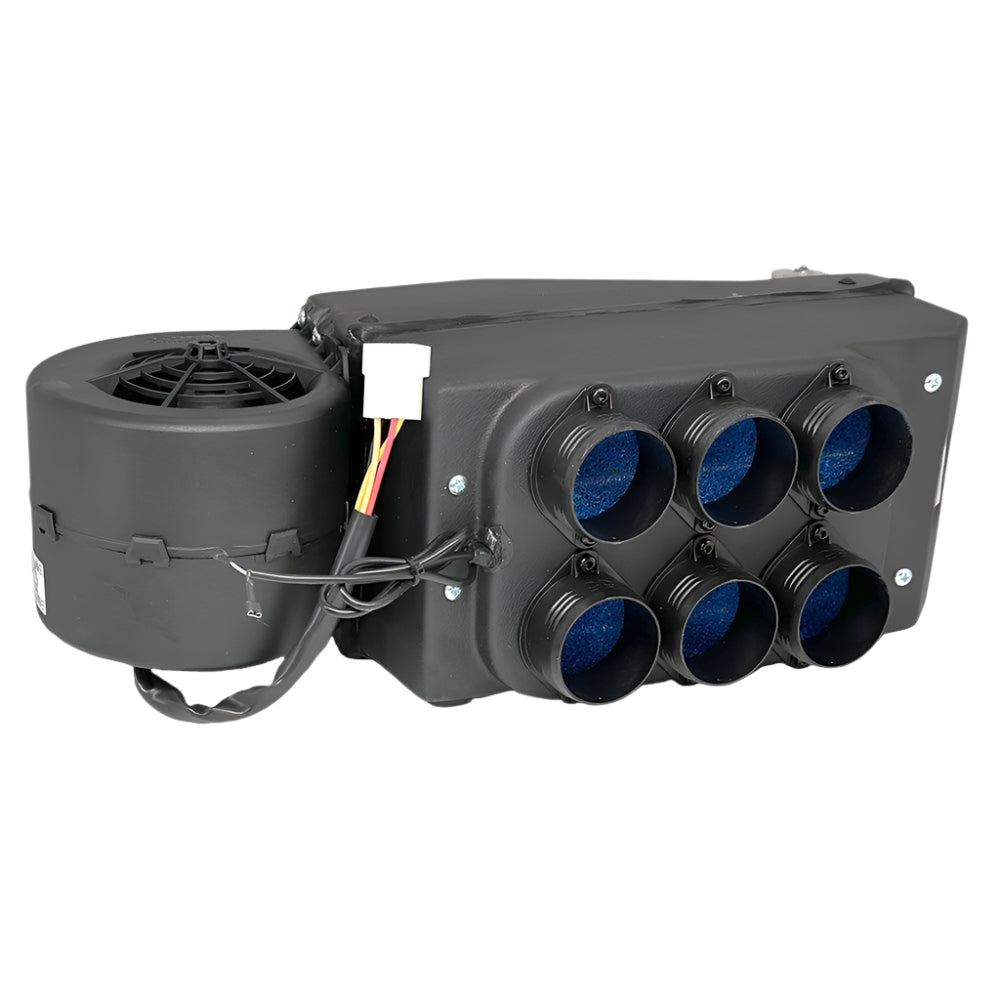

Pre-fitted expansion valve and six 55mm outlet connectors on the top facia.

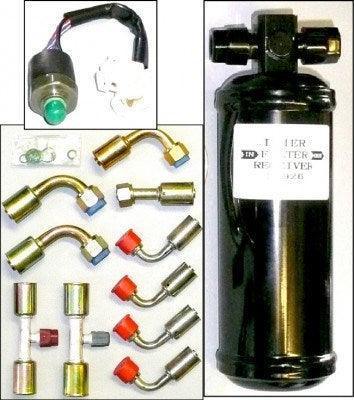

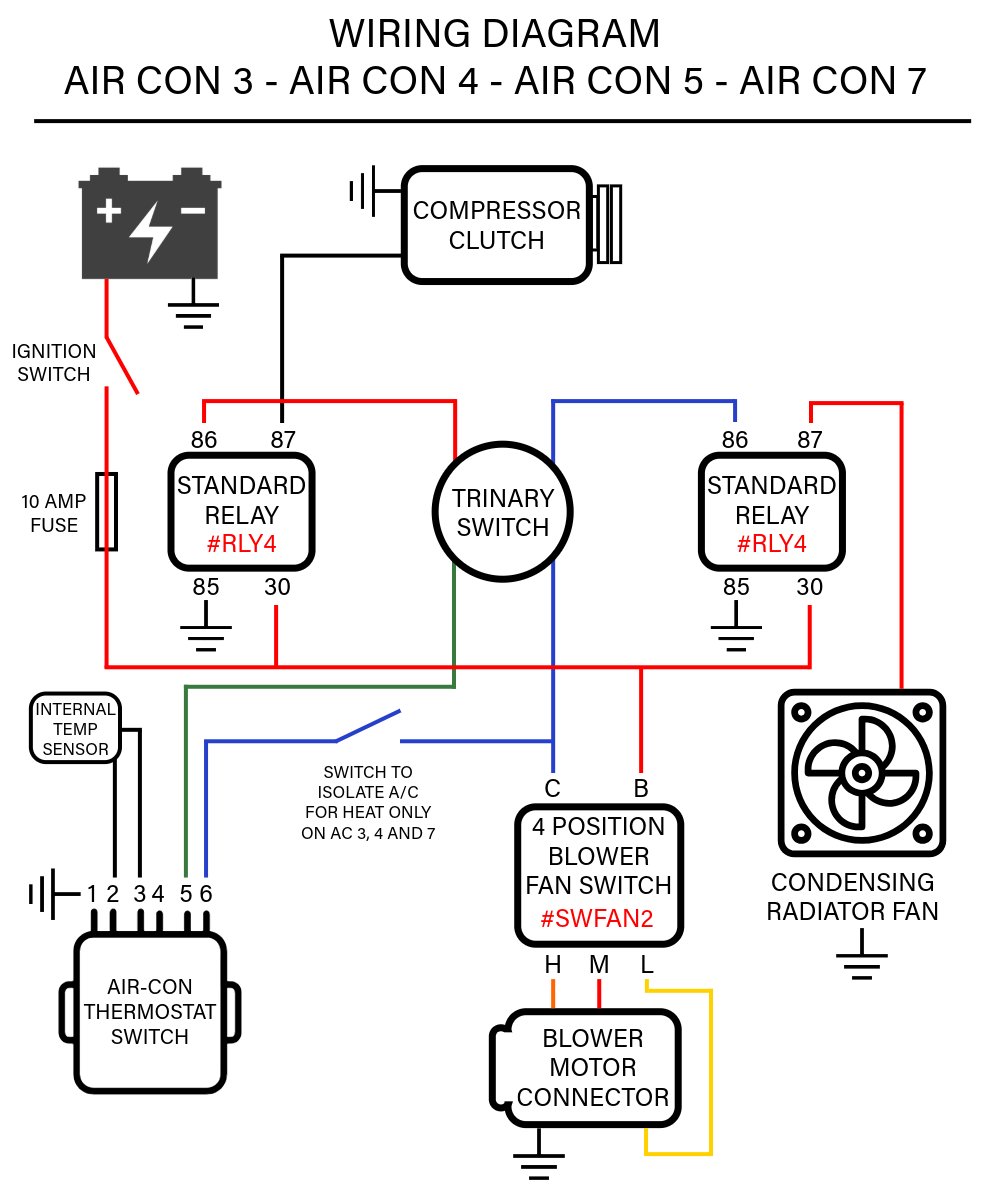

Desiccant drier with Trinary safety/radiator fan switch.
Complete set of hose unions, ‘O’ rings and charging/service ports.
(Hoses not included but we can supply)
Installation of this kit requires an engine-driven compressor and a condensing radiator (possibly with cooling fan).
Hose lengths can be determined and purchased after installation of components.
A local Air Conditioning specialists will charge and test the system for you.
NOTE: For UK customers we can now offer a crimping service for your hoses. For just £60+vat we will collect your boxed-up hoses and unions, crimp them and send them back to you. Full instructions on how to prepare the hoses and unions will be sent with the kit.
HEATER AND AIR CONDITIONING KIT WITH VERTICAL OUTLETS #AIRCON7
