Description

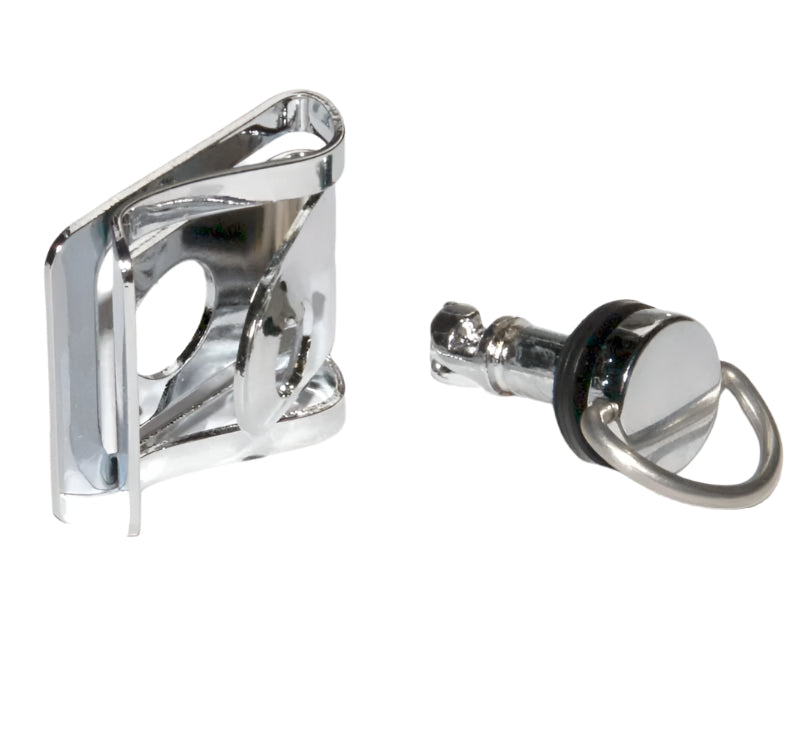

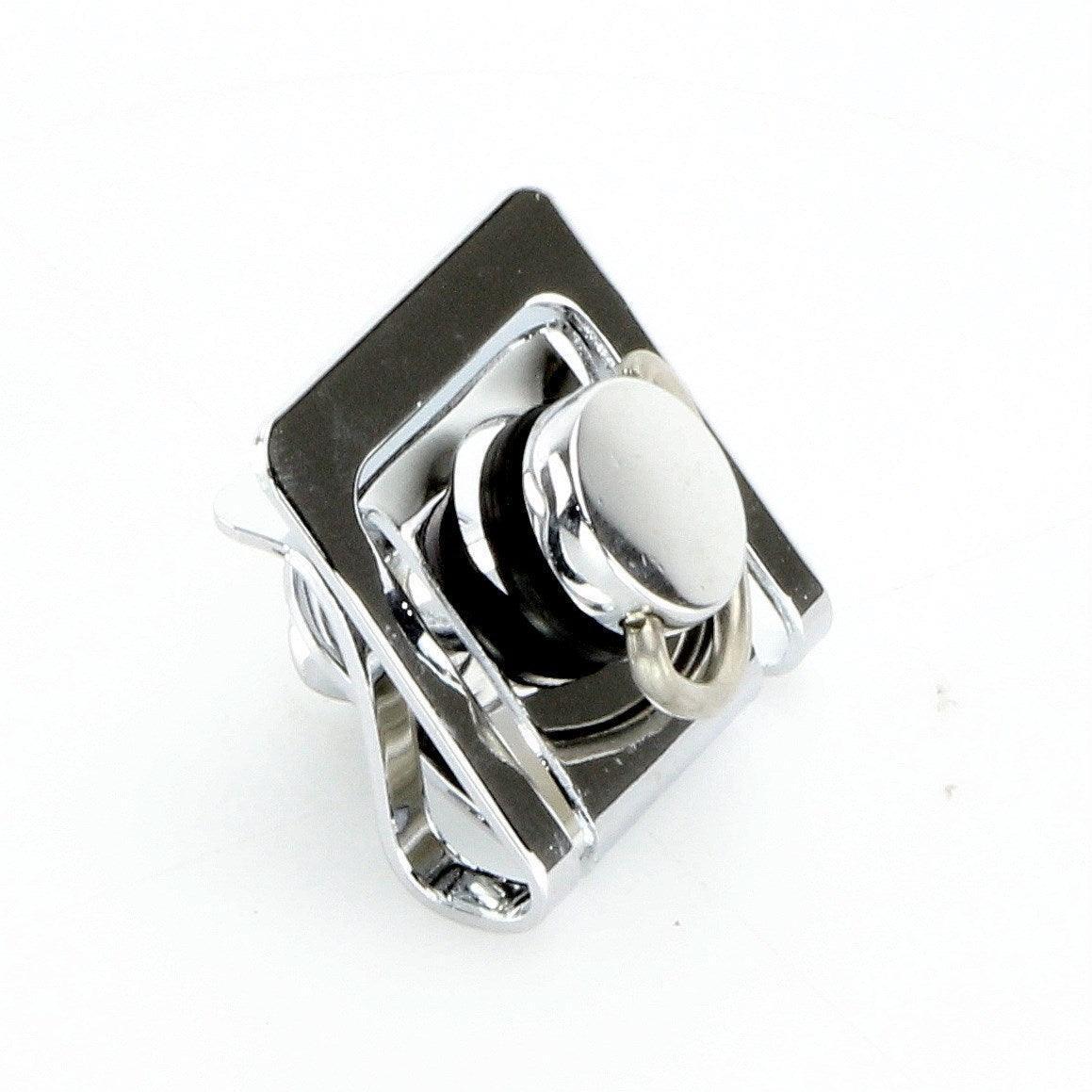

xCHROME QUARTER TURN FASTENER WITH BACKING PLATE.
These quarter-turn fasteners were designed as a quick-release fixing for two panels.

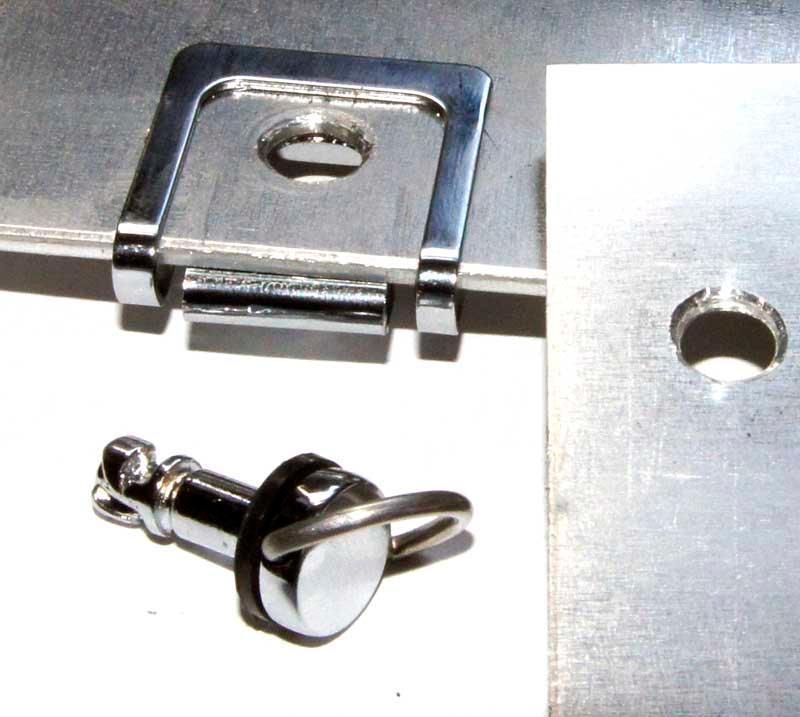

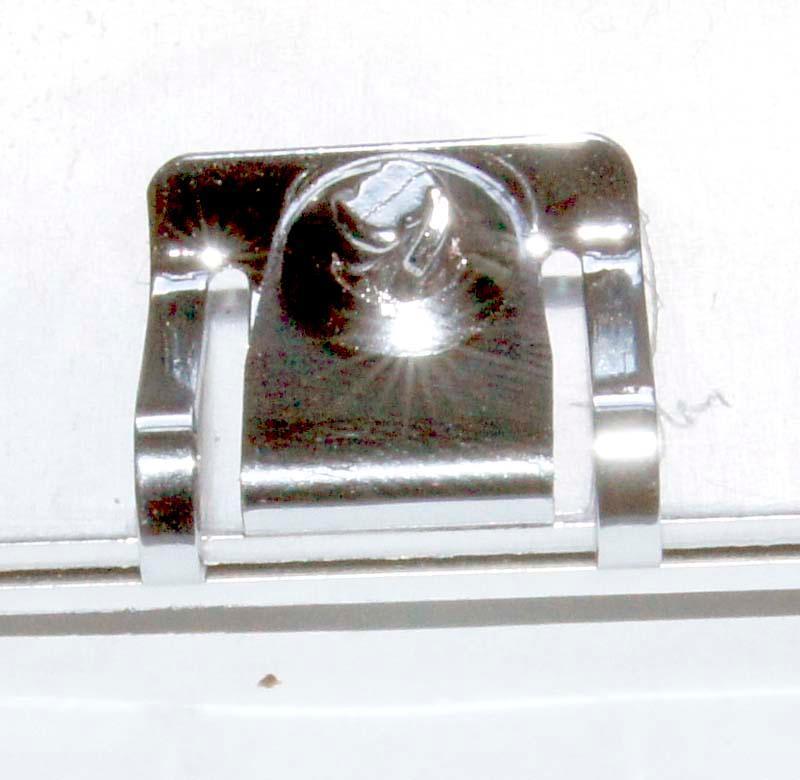

The plate (receiver) is slid over the edge of the lower panel (can be up to 3mm thick) and a 9mm clearance hole is drilled through.

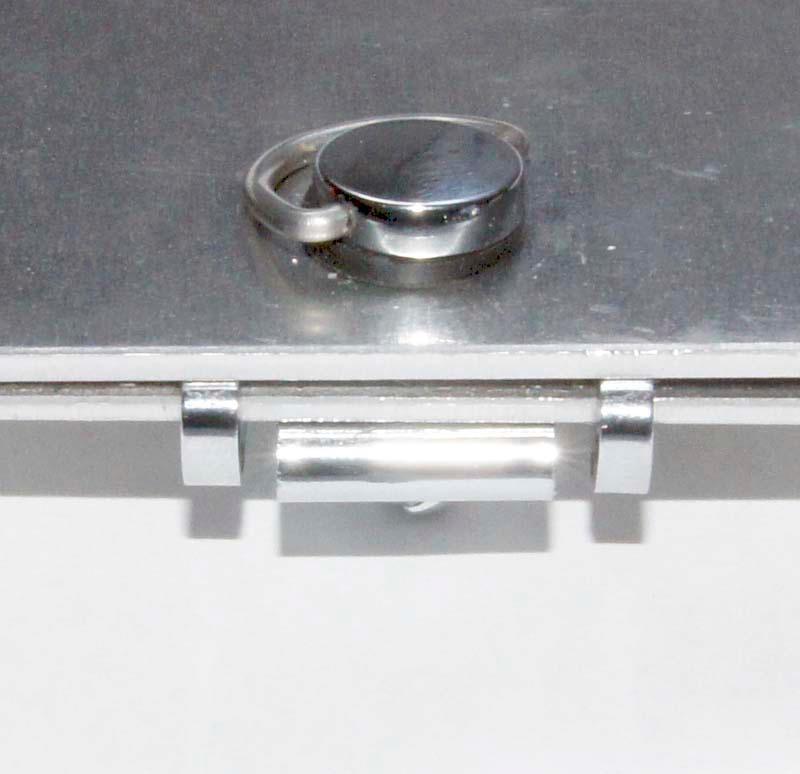

A 6mm hole is drilled through the top panel and the fastener is pushed through and twisted just a quarter of a turn, locking the panels together.
A rubber washer prevents vibration and protects the top panel's surface.
If your lower panel is very thin you can use a 'Doubler' - a small piece of panel glued to the first to increase it's thickness.
Head diameter 12mm.
Shaft diameter 6mm.
Hole centre distance from edge of lower panel 13mm.
A selection of sizes are available for different thicknesses of top panel.
If your top panel is thinner than the designated size you can add rubber washers under the head of the fastener.
CHROME QUARTER TURN FASTENER FOR 7mm TOP PANELS #CQT17
